8 on-board zones (16 w/ zone doubling)
Built-in access control features
Supports PCS Series, IP Module (IP150) and Voice Module (VDMP3)
In-field firmware upgrade via 307USB, Babyware and WinLoad
Selectable input resistors for EOL and Tamper
Compatible with NEware V4.0 or higher
Automatic Daylight Savings Time feature
PGM1 can be used as a 2-wire smoke input
Program remote controls using the master or installer codes
Built-in real-time clock backup battery
1.7A switching power supply
1 supervised bell output, auxiliary output and telephone line
Patented 2 opto coupler dialer circuit - the most reliable dialer in the industry (US Patents - 5751803, RE39406)
Push button software reset (reset to default values and restart)
Push button to activate or deactivate the Auxiliary output
Fits in a 28cm x 28cm x 7.6cm (11in x 11in x 3in) metal box
The EVO series share the same programming for easy panel substitution
EN 50131 grade 3

8 on-board zones (16 w/ zone doubling)
Built-in access control features
Supports PCS Series, IP Module (IP150) and Voice Module (VDMP3)
In-field firmware upgrade via 307USB, Babyware and WinLoad
Selectable input resistors for EOL and Tamper
Compatible with NEware V4.0 or higher
Automatic Daylight Savings Time feature
PGM1 can be used as a 2-wire smoke input
Program remote controls using the master or installer codes
Built-in real-time clock backup battery
1.7A switching power supply
1 supervised bell output, auxiliary output and telephone line
Patented 2 opto coupler dialer circuit - the most reliable dialer in the industry (US Patents - 5751803, RE39406)
Push button software reset (reset to default values and restart)
Push button to activate or deactivate the Auxiliary output
Fits in a 28cm x 28cm x 7.6cm (11in x 11in x 3in) metal box
The EVO series share the same programming for easy panel substitution
EN 50131 grade 3

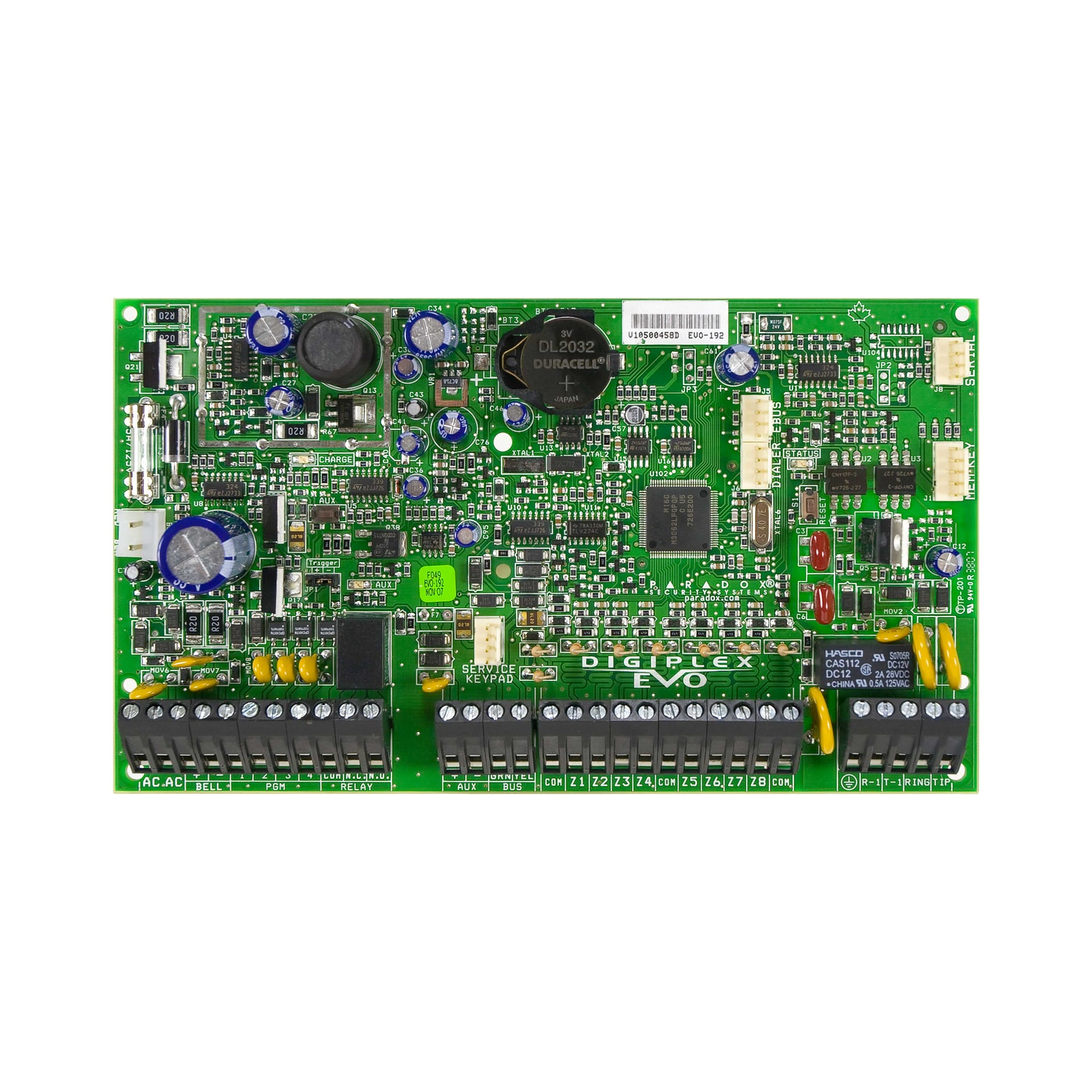

EVO192
