Up to 126 Sounder-Flasher at 3,000 meters loop length with maximum volume
100% uninterruptible loop alarm (zero seconds according to MLAR requirement)
Cost reduction, the integrated battery enables decentralised energy management, therefore no additional fire protection housing for the BMZ is required
Full integration into Loop3000 topology (with DC3500 from V5.0.4)
Individual configuration via DPT (41 tones incl. DIN tone, 4 different alarm scenarios, 4 volume levels)
Optimized, homogeneous SPL dispersion
Integrated automatic reset function for signal "external signal transmitters on/off" of the fire alarm control panel
Monitoring of the operating status via Loop3000
Visual Alarm Device according to EN 54-23, red LEDs
3 Brightness levels
Flashrate 1 Hz or 0,5 Hz
High: C-3-6; W-2,4-3
Medium: C-3-5; W-2,4-2,8
Low: C3-4; W-2,4-2,3
Optional automatic or manual addressing.
Integrated bidirectional isolator according to EN 54-17
Easy installation, the base allows quick pre-installation and loop connection
Designed for wall and ceiling mounting (cover cap available as accessory)
Integrated base for Loop3000 series automatic detectors (ceiling mounted)
Long-term investment through physical separation of signalling and fire detection. The sounder can continue to be used if it is necessary to replace the detector.
Service-friendly due to integrated battery monitoring and runtime prognosis via DPT
Esthetic, robust housing according to IP 41

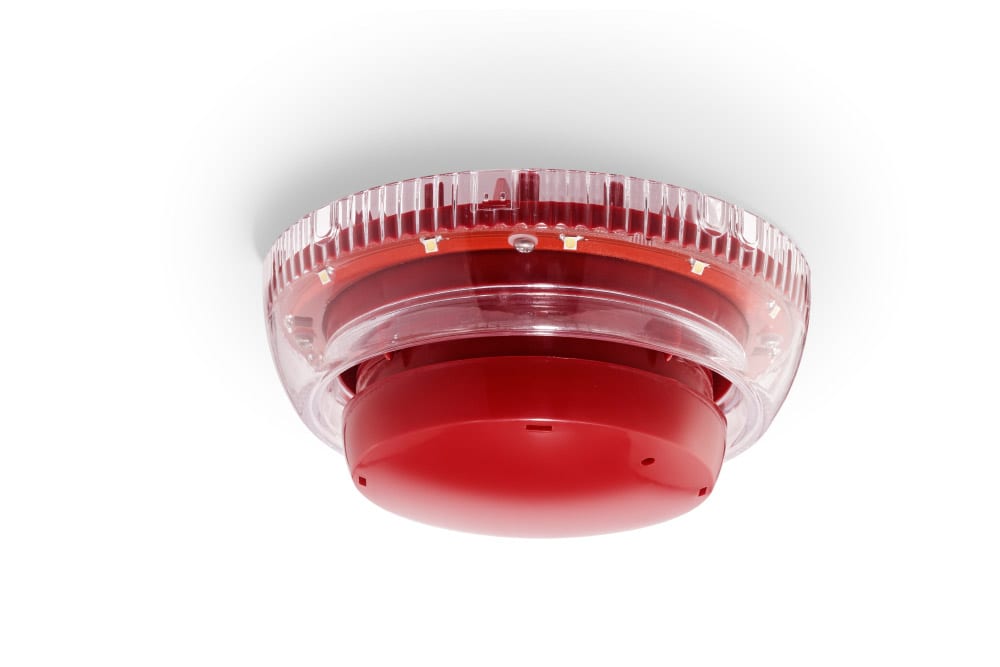

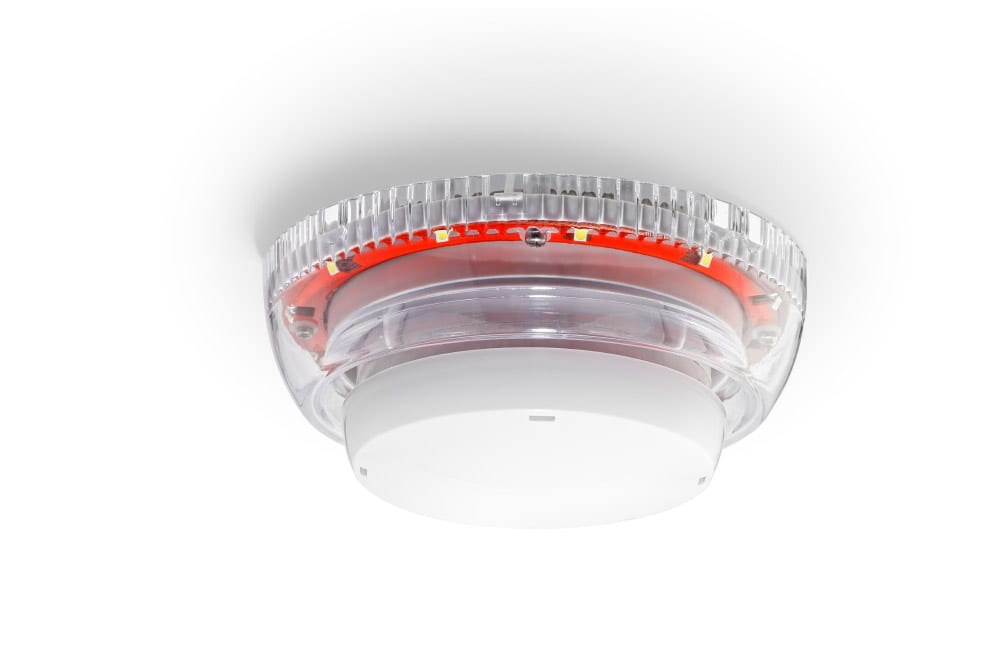

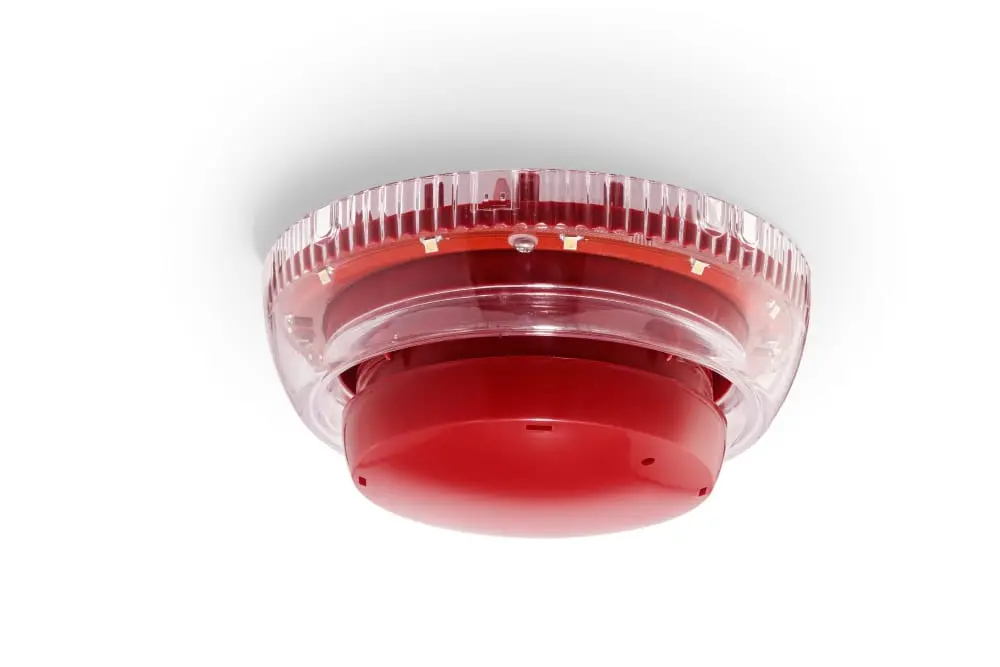

PL 3300r CONUS SFr

About this product
